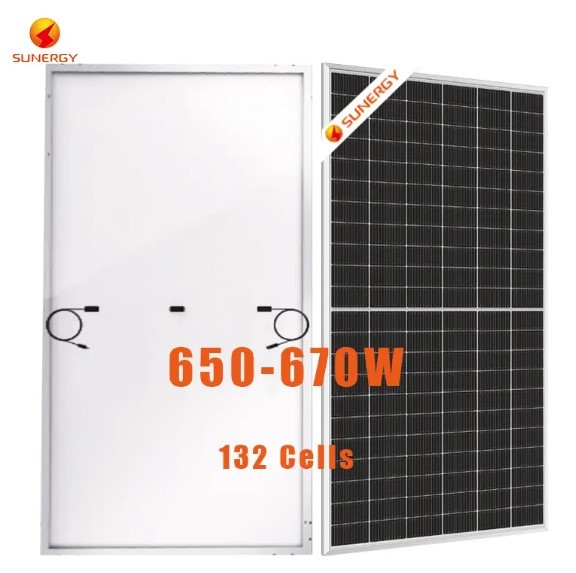

Customized 540W -660W Solar PV Panel SUN 66M-H12

Product Categories

Shenzhen Anli Energy Co., Ltd.

Contact Now

Name: Customized 540W 660W Solar PV Panel SUN 66MH12
Brand: Customized by customer
Price: 1 USD

Brand Name : Customized by customer

Model Number : SUN 66M-H12

Certification : FC, CE, ISO

Place of Origin : China

MOQ : 100KW

Delivery Time : 15days (produce time)+30day(delivery time)

Application : Solar Energy System

power : 540~550W

Degree Of Protection : IP65

Fireproof Class : class A

Frame Color : black or white

Installation Site : Open field or rooftop

Junction Box : IP65

Panel Material : Polycrystalline silicon

Power Output Warranty : 25 years

Power Tolerance : 0 ~ 3%

Contact Now

540W -660W solar panel

Electrical Characteristics
Module Type	540W		545W		550W
	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power At STC(Pmax)	540W	406.8W	545W	410.5W	550W	414.3W
Short Circuit Current(Isc)	13.70A	11.07A	13.76A	11.12A	13.82A	11.17A
Open Circuit Voltage(Voc)	49.8V	46.5V	50.0V	46.7V	50.2V	46.9V
Maximum Power Current(Impp)	12.86A	10.49A	12.92A	10.54A	12.98A	10.58A
Maximum Power Voltage(Vmpp)	42.0V	38.8V	42.2V	39.0V	42.4V	39.1V
Module Efficiency	20.92%		21.10%		21.29%
Power Tolerance	0～+5W
Maximum System Voltage	VDC 1500V
Maximum Series Fuse	25A
Increased Snowload Acc.to lec 61215	5400Pa
Operating Temperature	-40～+85℃
Number of Bypass Diodes	3
Norminal Operating Cell Temperature(Noct)	45℃±2℃
Temperature Coefficient of Pmax	-0.35%℃
Temperature Coefficient of Voc	-0.27%℃
Temperature Coefficient of Isc	0.05%℃
STC (standard test environment): irradiance 1000W/m², battery temperature 25°C, spectrum AM1.5
NOCT (normal battery operating temperature): irradiance 800W/m², ambient temperature 20°C, spectrum AM1.5, wind speed 1m/s.

Customized 540W -660W Solar PV Panel SUN 66M-H12
